Sega Game Gear modded for TV output Composite video output Game Gear

Feb 6, 2012 at 2:19:31 AM
CR2504life (2)

(Joel N) < Flicky >
Posts: 16 - Joined: 02/06/2012
British Columbia
Profile
I modified my sega game gear for TV output, and its sweeeeet.

Check out my short youtube video of it:



It was an easy mod, I ordered the board from a hobby developer in Australia.





-------------------------
cr2504life1 @ XBL

Feb 6, 2012 at 2:22:13 AM
CR2504life (2)

(Joel N) < Flicky >
Posts: 16 - Joined: 02/06/2012
British Columbia
Profile
The board fits nicely into an available area under the cart connector. The video signal replaces one of the audio channels in the headphone jack, so that there is no modification to the case.

-------------------------
cr2504life1 @ XBL

Feb 6, 2012 at 5:24:05 PM
MODERATOR
flatuswalrus (54)
avatar
(Mr. Dane) < Dr. Zan >
Posts: 7279 - Joined: 11/12/2010
Queensland
Profile
That's neat, do you think you will actually use it much?

-------------------------
May a fart be on your father's beard.

Feb 6, 2012 at 6:48:24 PM
CR2504life (2)

(Joel N) < Flicky >
Posts: 16 - Joined: 02/06/2012
British Columbia
Profile
Probably not a whole lot, why do you ask ?
Although I may not use it alot, that doesn't mean it was not worth it.

-------------------------
cr2504life1 @ XBL

Feb 6, 2012 at 6:52:47 PM
videogamehunter (56)
avatar
(Tyler Bartsch) < Bio-Hazard Battler >
Posts: 608 - Joined: 11/11/2010
Kentucky
Profile
Interesting.

-------------------------

My videos - http://www.youtube.com/user/hotanime32

New Video - My Little Nostalgia - Playstation - https://www.youtube.com/watch?v=5...

My Drawings - http://videogamehunter.deviantart.com/



Feb 6, 2012 at 6:54:04 PM
MODERATOR
flatuswalrus (54)
avatar
(Mr. Dane) < Dr. Zan >
Posts: 7279 - Joined: 11/12/2010
Queensland
Profile
Originally posted by: CR2504life

Probably not a whole lot, why do you ask ?
Just curious.

-------------------------
May a fart be on your father's beard.

Feb 6, 2012 at 10:40:48 PM
CR2504life (2)

(Joel N) < Flicky >
Posts: 16 - Joined: 02/06/2012
British Columbia
Profile
I can now add a small LCD screen, and replace the old screen, Im planning on doing that at some point.
These small screens can be purchased cheap from DealExtreme or eBay and have composite video input.
It will probably improve the battery life since the fluorescent tube will be removed, and will look 10 times better.

-------------------------
cr2504life1 @ XBL

Feb 7, 2012 at 3:08:51 PM
Drakon (0)
This user has been banned -- click for more information.
(Dra kon) < Alex Kidd >
Posts: 34 - Joined: 08/07/2011
Ontario
Profile
If I had a gamegear I'd add one of these to it.

Feb 7, 2012 at 3:15:19 PM
CR2504life (2)

(Joel N) < Flicky >
Posts: 16 - Joined: 02/06/2012
British Columbia
Profile
Oh yeah, it is also capable of S-Video and RGB Video, but I didnt hook that up.

-------------------------
cr2504life1 @ XBL

Feb 7, 2012 at 7:59:48 PM
Drakon (0)
This user has been banned -- click for more information.
(Dra kon) < Alex Kidd >
Posts: 34 - Joined: 08/07/2011
Ontario
Profile
Originally posted by: CR2504life

Oh yeah, it is also capable of S-Video and RGB Video, but I didnt hook that up.

Yes mr. british columbia you mentioned that in your video.  It uses a bh7236af video encoder that does rgb, s-video and composite.

Feb 7, 2012 at 11:29:17 PM
SamSpade (61)
avatar
(Joey Pimkowski) < Moonwalker >
Posts: 2253 - Joined: 11/12/2010
California
Profile
That's pretty cool. It's cool what you guys come up with in terms of mods.

-------------------------





Feb 11, 2012 at 5:37:38 AM
zigzagzarf (2)

(Deez Nutz) < Tom-Tom >
Posts: 94 - Joined: 11/11/2010
Ohio
Profile
you need to add a master system control port now

Mar 19, 2012 at 5:27:20 PM
omp (0)

(Pete A) < Alex Kidd >
Posts: 39 - Joined: 12/31/2011
Queensland
Profile
Just be aware if you add an LCD screen you won't get the full screen image when playing Game Gear games. I have a post on SMSpower somewhere, I tried to be a smart-arse and purchased a 4.25inch screen that claimed to have "zoom function". It wasn't zoom function lol, it was widescreen to letterbox.....bastards. Anyway with Master System ported games (MM Castle of Illusion) it looks fantastic. I have also made a consolized GG using the same board (from Viletim) where the cartslot has been re-located so that the cart top loads through the where the screen was and has 1 and 2 player controller ports.

If you want better battery life do the NDSi backlight mod, again on SMSpower, I have added a thread there. I haven't finished mine yet (just recently become a Dad), but someone did it to theirs and it looks pretty good!

-------------------------


Mar 19, 2012 at 5:35:08 PM
CR2504life (2)

(Joel N) < Flicky >
Posts: 16 - Joined: 02/06/2012
British Columbia
Profile
Oh right, I forgot that the picture isnt full screen. This isnt a problem on a big TV screen, but I would be sad if my 4" LCD screen was not fully utilized.
Its great to know someone else who has done the same modification. Thanks for the tips too.


-------------------------
cr2504life1 @ XBL

Jun 6, 2012 at 9:43:53 PM
derekellis (11)

(Derek Ellis) < Neff >
Posts: 438 - Joined: 06/06/2012
Connecticut
Profile
where does the cable plug into to run it to your TV? S-Video or Yellow RCA Type plug?

-------------------------
The Few, The Proud, The Marines.
1999-2004
www.facebook.com/derekellis81


Jun 7, 2012 at 12:04:00 AM
CR2504life (2)

(Joel N) < Flicky >
Posts: 16 - Joined: 02/06/2012
British Columbia
Profile
The board is capable of giving both s-video and composite (yellow RCA), however I decided to use only the comosite output, so thats how it connects to the TV.

-------------------------
cr2504life1 @ XBL

Jun 26, 2012 at 8:00:17 PM
BouncekDeLemos (73)
avatar
(Bouncy Blooper) < Bio-Hazard Battler >
Posts: 742 - Joined: 11/26/2011
Florida
Profile
Cool stuff! Mike Matei from cinemassacre just got one of these made from Richard DaLuz -- the dude that made the Super Genatari and the Nintoaster. He even added a Master System controller with a start button:


-------------------------
NA - http://goo.gl/Bi25pL... SA - http://goo.gl/qmKao... PSC - http://goo.gl/VYlKhP...
http://goo.gl/xmzKR...
(√ ̅-1)(2³)Σ(π)

Jun 26, 2012 at 11:32:19 PM
CR2504life (2)

(Joel N) < Flicky >
Posts: 16 - Joined: 02/06/2012
British Columbia
Profile
Hey,
Yeah, I saw Mike Matei's new Game Gear video when it was posted a couple days ago and I was like "no way".
We have the exact same board from Tim in Australia, crazy. Its a nice board, and so easy to install.

Nice vid, and install. I like the sega master system controller port, very nice.

Thanks for the message.
TTYL

-------------------------
cr2504life1 @ XBL

Jun 28, 2012 at 3:42:27 AM
TheShamblingMound (6)
avatar
(S Mound) < Neff >
Posts: 474 - Joined: 04/30/2012
Connecticut
Profile
very cool Mod! now if someone could figure out how to add a rechargeable battery ala DS or PSP.....

-------------------------



Nov 1, 2012 at 8:44:45 PM
CR2504life (2)

(Joel N) < Flicky >
Posts: 16 - Joined: 02/06/2012
British Columbia
Profile
I made a video about the mod:





-------------------------
cr2504life1 @ XBL

Dec 16, 2013 at 12:53:28 AM
CR2504life (2)

(Joel N) < Flicky >
Posts: 16 - Joined: 02/06/2012
British Columbia
Profile
UPDATE: Ive re-built this project, but this time I made the circuit board at home from scratch.
Heres a video:






-------------------------
cr2504life1 @ XBL


Edited: 12/16/2013 at 12:53 AM by CR2504life

Dec 16, 2013 at 12:56:39 AM
CR2504life (2)

(Joel N) < Flicky >
Posts: 16 - Joined: 02/06/2012
British Columbia
Profile

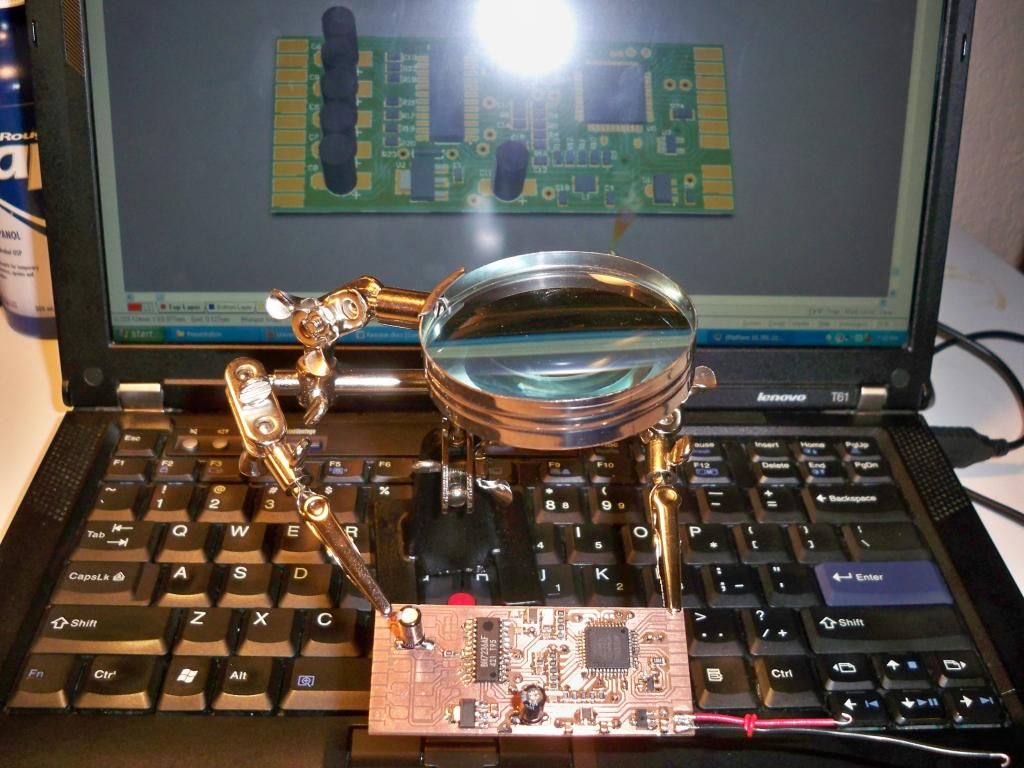

Heres a pic of the home made GGTV board.






-------------------------
cr2504life1 @ XBL


Edited: 12/16/2013 at 12:57 AM by CR2504life

Dec 16, 2013 at 1:00:57 AM
CR2504life (2)

(Joel N) < Flicky >
Posts: 16 - Joined: 02/06/2012
British Columbia
Profile

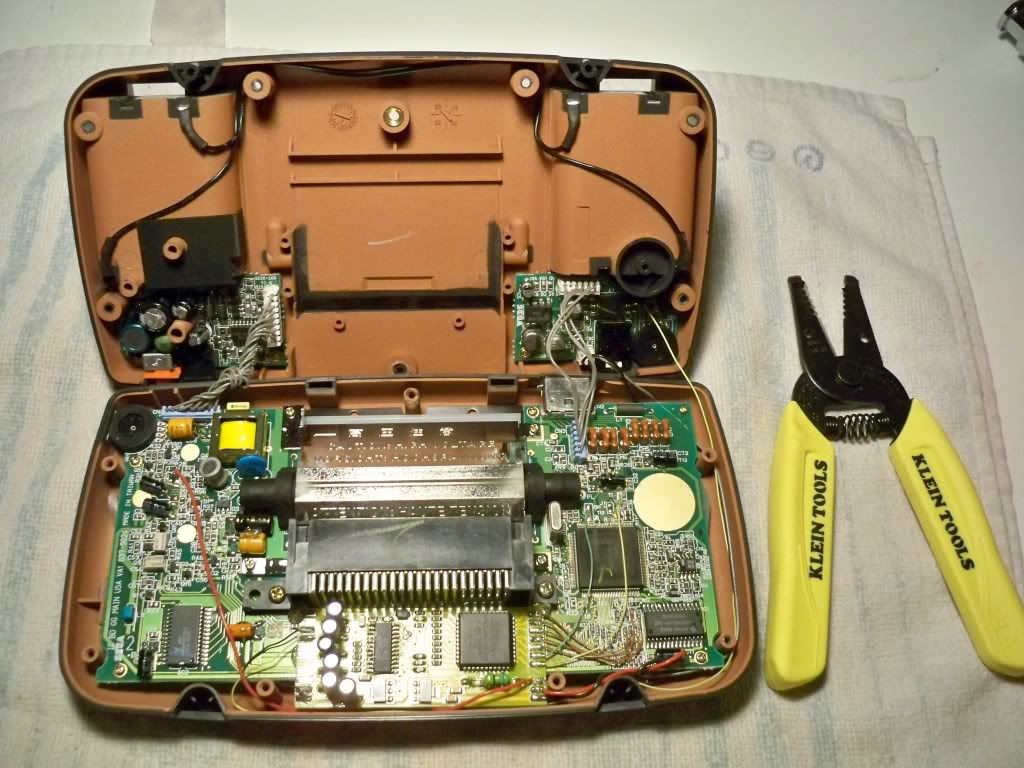

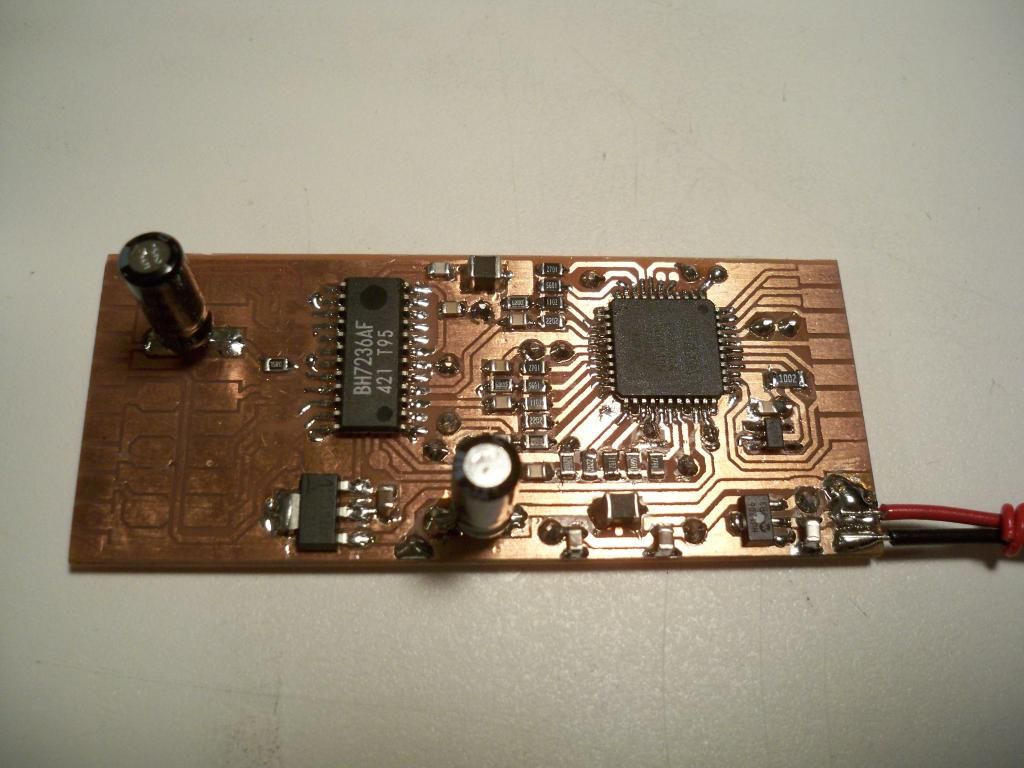

one more pic

-------------------------
cr2504life1 @ XBL

Dec 16, 2013 at 3:23:34 PM
The Count (90)
avatar
(Grant X.) < Neff >
Posts: 288 - Joined: 11/30/2010
Minnesota
Profile
I'm interested in doing this or getting this done. Does this require an early release GG or will any GG do? Also, would the GG need to be in good working order, i.e., working screen and sound caps?

Dec 16, 2013 at 9:55:27 PM
CR2504life (2)

(Joel N) < Flicky >
Posts: 16 - Joined: 02/06/2012
British Columbia
Profile
This mod can be done on either the 1-asic or 2-asic Game Gear models.

The screen wouldnt necessarily need to be working, nor the sound capacitor. The developer doensnt recommend installing this mod on a Game Gear without replacing the main board's capacitors first. I've replaced the caps on my main board before installing the GGTV board.

-------------------------
cr2504life1 @ XBL
